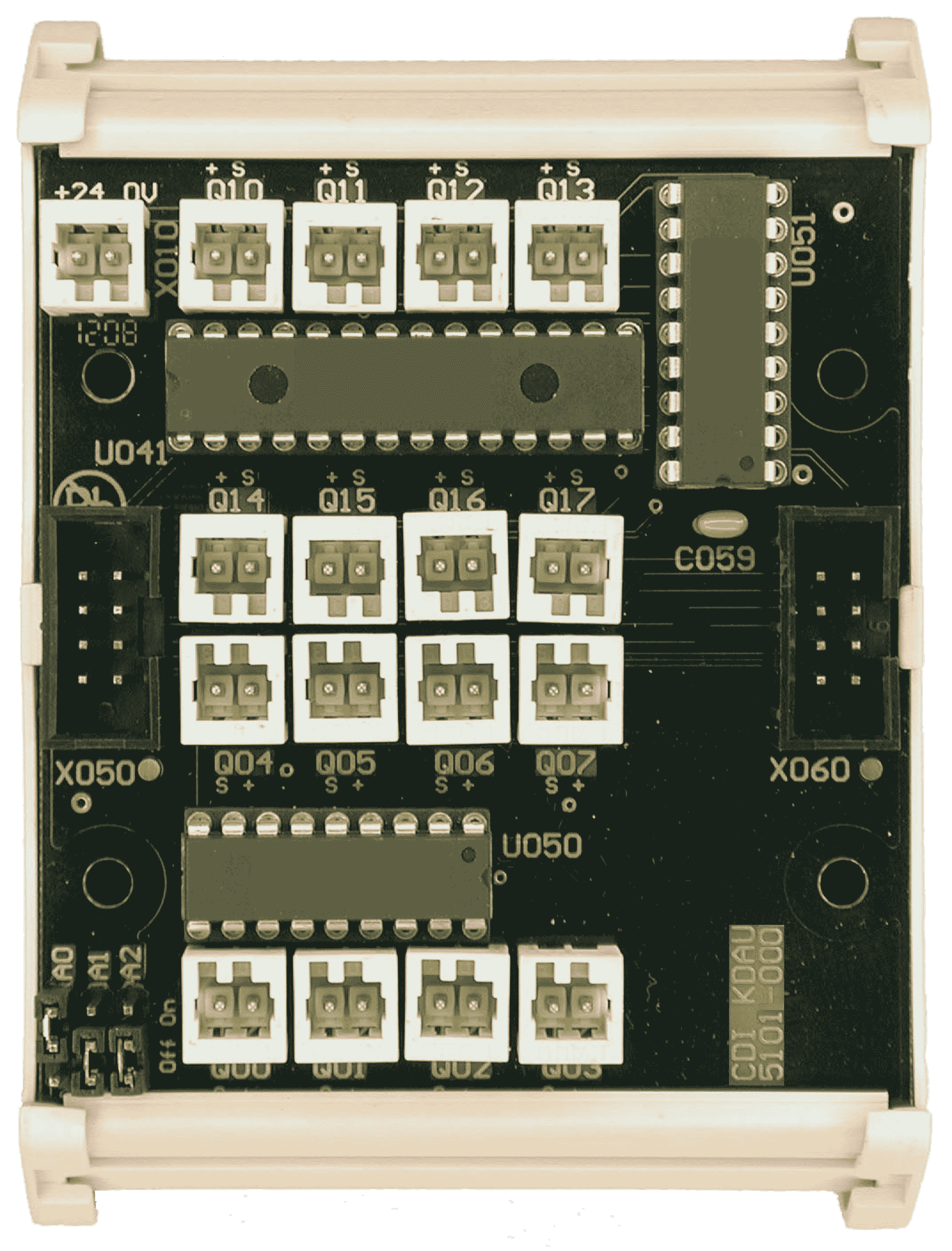

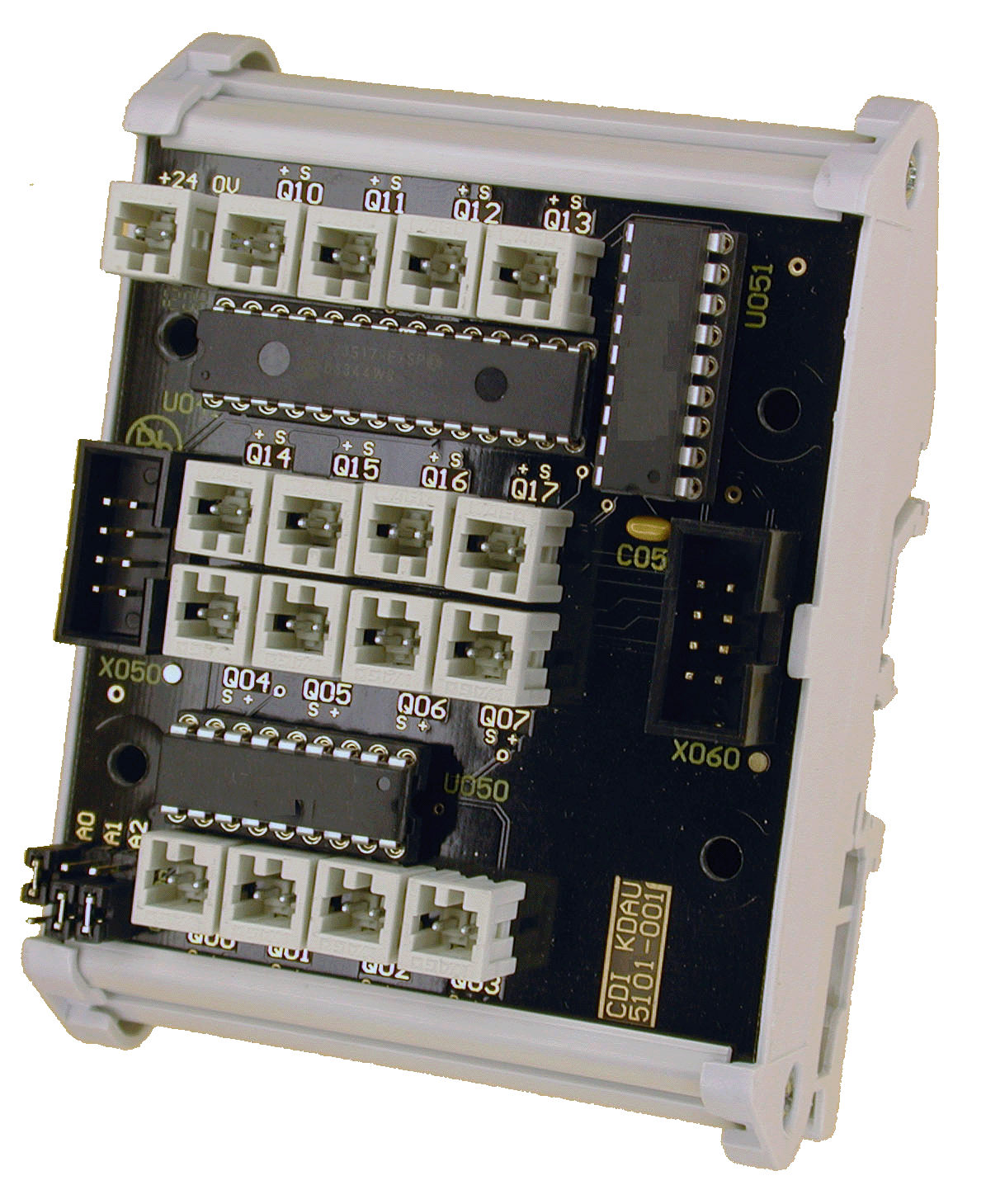

KDAU-5101-001 - 16 x OUTPUTS PNP 24VDC/0.5A MODULE

DESCRIPTION

8 PNP outputs 24VDC/0.5A module

All outputs fitted with

WAGO 2 pins 733-332 connectors for direct load connexion

with NPN output, and +24V

Compatible cable connector WAGO 733-102

Supply connector

WAGO 2 pins 733-332

Compatible cable connector WAGO 733-102

KDIO Bus address selectable from 0 to 7

TECHNICAL INFORMATION

ELECTRICAL

KDIO BUS

Address [0..7] selectable
2 x KDIO flat cable interconnection connector for up to 8 modules in cascade connections

VOLTAGES & CURRENTS

Absolute maximun voltage at NPN output 50V
Maximal current 0.5A per output
Total simultaneous output current for one 8 output channels group 2.0A
Need external current protection

CONNEXIONS

SUPPLY

OUTPUTS

MECHANICAL

Dimensions: L 67.5 X H 92.6
Conform for rail mount for norms DIN EN 50022, DIN EN 50035 & DIN EN 50045
